CNC Plasma/Gas Profile Cutting Machine

CNC Plasma/Gas Profile Cutting Machine

Technocrats offer wide range of state of the art most user friendly CNC Profile Cutting Machines which are considered one of best option in market today. We have made a space for ourselves in a very short span of time as the leading manufacturers of Plasma CNC Profile Cutting Machines and exporter based in Mumbai in India. The features of our machines are developed based on the feedback received from survey & our users. This has made our system most acceptable to users.Learning; the operation is childs job. Hardened &Ground Drive mechanism, Precision rack & pinion, precisely fabricated and machined surfaces produces excellent stability to the system. The rapid speed is achievable in the range of 15 meters per minute. The cutting of sheets of thickness in the range of 0.2 mm or so is possible at speed of 14 meters per minute by our most popular cnc machine model known as cub. The controller, softwares, drives and motors are from internationally reputed manufacturers and are time tested for their reliable performance. Plasma Cutting power sources up to the capacity for 100 mm and oxyfuel/gas cutting upto200 mm is readily available from 1500 mm width to 6000mm width and length up to 100 meters. Auto plate alignment, Auto Nesting is standard feature of our machines. Under water cutting, fume extraction system and pollution controlled enclosures are provided as per the requirement of customers. System can be designed for multi functions such as drilling, taping, marking, beveling etc as per the requirement.

Computerized Numerically Controlled Plasma/Gas profile cutting system provides most economical solution for metal cutting for fabrication industry. All drawings produced in AutoCAD is imported into the nesting software and the desired codes (G&M) are transferred to the CNC controller which in turn controls drives to cut shapes in an optimum order. Basic system of X-Y table, motors with drives, Auto height control systems, Plasma cutting torch, Gas cutting torches, Plasma power supply, Gas supply manifold etc. Air, oxygen, Argon, Argon+Hydrogen, Nitrogen etc. are used as plasma gas in combination with shielding gas depending upon the materials being cut. Air and oxygen are used for mild steel cutting with plasma for economic reasons.

All ferrous and non-ferrous materials can be cut with Plasma. However Plasma cutting of mild steel is limited to 50mm thickness for economic reasons. Gas cutting (oxy-fuel) is possible up to 300 mm thicknesses.

Miniature Based CNC Profile Cutting Machine

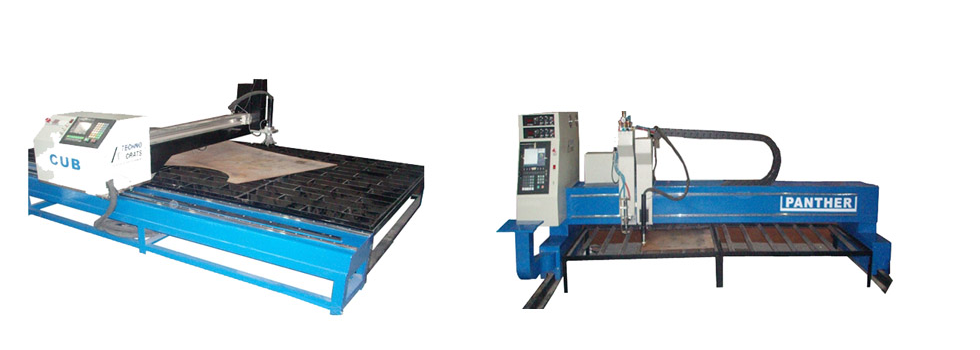

Cub series of miniature NC profile cutting machines is targeted at small and medium scale industries. Portable NC machines have almost all the features of a big CNC machines. AutoCAD drawings are converted into codes using the nesting software and transferred to the machine through pen drive.
The machine cuts all shapes and parts as designed. An accuracy of 0.5mm may be expected from this machine of basic size of 1500mmx3000mm. It is possible to mount two torches of Plasma or oxy-fuel within the cutting width of 1500mm. The length of the machine can be up to 6000mm. Cutting capacity will depend upon the capacity of Plasma cutting machine. Most commonly used range is 1-30mm. However there is no limit up to 100mm.

Gantry Based CNC Profile Cutting Machine

Gantry based CNC profile cutting machines has all popular features generally found in the market. There is no limitation of width and length of the machine.
It is possible to deliver machines with very high accuracy of cutting. Unique design of initial and auto height control makes the product more versatile and produces best quality of circles and other shapes. Beveling is possible even on circular cuts. Plasma cutting produces results which are so close to the ideal cuts produced by market leaders at much higher investment and operating cost.

Inverterised SAW power source

Inverterised SAW power source is incorporated with constant voltage/constant current characteristics. They allow step less selection of output voltage. The weld quality is superior with this type of power source.
