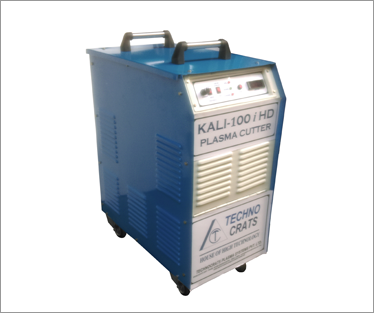

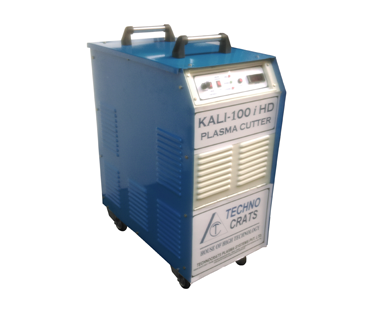

Inverter CNC Plasma Cutting Machine KALI-100iHD
  CNC Plasma Cutting Machine -> KALI-100iHD
Plasma Cutting Machines
  CNC Cutting Systems
  •   Miniature Type
  •   Gantry Type
  •   Pipe Profile
  CNC Plasma Cutting Machine
  •   KALI-HD Series
  •  KALI-150HD
  •  KALI-200HD
  •  KALI-400HD
  •  KALI-500HD
  •  KALI-45iHD
  •  KALI-80iHD
  •  KALI-100iHD
  •  KALI-200iHD
  •  KALI-300iHD
  Manual Plasma Cutting Machine
  •   KALI-F Series
  •   KALI-H Series
  •   KALI-I Series

CNC Compatible Air Plasma Cutting System:

KALI-100iHD is cnc compatible plasma cutting machine with maximum 30-120 amperes output current range. It can produce 0.3mm to 32mm pierce cut and 45mm edge cut on any electro conductive metal plate like Stainless Steel(SS), Mild Steel(MS), Copper, Brass, Aluminium, Inconel, Monel, Titanium, Nickel, Chrome, Bronze, Galvanized Steel, Heated Steel, Wear Plates & Castings etc.
It saves over 50% electricity consumption cost compared to conventional machines.

Special Features:

• 100% Indian Product.
• Efficiency and Power Factor over 90%.
• Saving over 50% compared to conventional mahines.
• Air Cooled Torch with 6meters long cable.
• unique torch design which allows operator to place the torch on the job being cut.
• Best cut quality / input power ratio .
• Post cutting operations such as grinding of dross etc. almost eliminated.
• Designs takes care of EMI interference which is prominent with other machines.
• Highest consumable life.
• Almost all parts of the torch are replaceable hence least maintenance cost .
• Safety interlocks for operators and machine against high/low voltage, low air pressure.
• Power source is designed for continuous operations.
• Least operating cost & Energy Effiicient.
• Heavy duty design for integration with CNC profile Cutting machines.

Technical Specification Of KALI-100iHD:

Input : 3 Phase, 415Volts± 15%, 50 Hertz
Open Circuit Voltage : 300 Volts
Output Current Range :  30-120 AMPS
Max Power Output :  13.2 KW
Power Factor :  0.9+
Cutting Range (Pierce/Edge) : 15/30 mm
Insulation Class : “H/F”
Power Source Cooling  :  Forced Air
Torch Cooling  :  Air/Water
Suitability with plasma gases  :  Oil Free Compressed Air

Standard Scope of Supply:

• Heavy Duty Water Cooling & Circulating Unit with Water Tank, Radiator and Cooling Fan.
• Water cooled Air Plasma Cutting CNC Torch.
• Electrode - 5 Sets.
• Nozzles - 5 Sets.
• 'O' Ring - 5 Sets.

Operator Manual - KALI-100iHD

Spares & Consumables available for the machine KALI-100iHD:

• Nozzle.
• Electrode.
• Front Cap.
• Contact Tube.
• Electrode Holder.
• Nozzle Holder.
