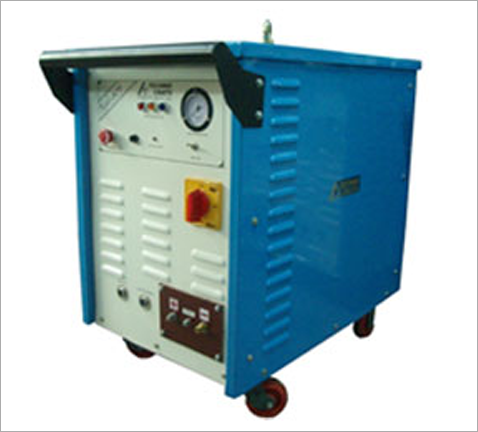

Manual Plasma Cutting Machine -- KALI-80F

Manual Plasma Cutting Machine -- KALI-80F

Heavy Duty Air Plasma Cutting System:

KALI-80F is plasma cutting machine with maximum 90 amperes output current. It can cut upto 25mm fine cut and 40mm severance cut of any electro conductive metal plate like Stainless Steel, Mild Steel, Copper, Brass, Aluminium, Inconel, Monel, Titanium, Nickel, Chrome, Bronze, Galvanized Steel, Heated Steel, Wear Plates & Castings etc.
It is heavy duty, rugged machine suitable fot both workshop & project sites.

Special Features:

  • 100% Indian Product.
  • Safety interlocks to protect the operator & the machine.
  • Designed for continuous operation.
  • Compatible for CNC profile cutting machine.
  • Best Quality / Input Power Ratio.
  • Minimum post cutting operations.
  • Unique torch design for ease in operation.
  • Least maintenance cost.
  • Highest consumable life.
  • Fixed or step controlled power source.
  • Output current for the machine is fixed and does not change.
  • Cutting speed requires adjustment depending upon the thickness.
  • Suitable for application where cutting thickness do not vary much.
  • Most reliable , No electronics, Least maintenance cost.

Technical Specification Of KALI-30F:

  • Input : 3 Phase, 415Volts± 15%, 50 Hertz
  • Open Circuit Voltage : 330 Volts
  • Output Current Range : 90 AMPS
  • Max Power Output : 12.2 KW
  • Power Factor : 0.5
  • Cutting Range (Fine/Severence) : 25/40 mm
  • Insulation Class : “H”
  • Power Source Cooling : Forced Air
  • Torch Cooling : Air
  • Suitability with plasma gases : Oil Free Compressed Air

Standard Scope of Supply:

  • Air cooled Air Plasma Cutting manual torch with 6 mtrs of cable hose and operating switch. –1 no
  • Earthing cable with clamp. –1 no.
  • Hose pipe of 5 meters with end coupling.
  • Electrode & Nozzles - 5 Sets.

Consumables:

Spares & Consumables available for the machine KALI-80F:

  • Nozzle.
  • Electrode.

Spares:

  • Hand Torch Assembly.
  • Front Cap.
  • Contact Tube.
  • Electrode Holder.
  • Nozzle Holder.

Optional Accessories:

  • Air Cooled Machine Torch with 6mtrs length.
  • Trolly with 1.8meters steel track & circle cutting attachment.
  • Air Compressor.
  • Gouging Torch.
  • Extra Cable Length.
