Precision CNC Pipe Profile Cutting Systems for Faster, Smarter & More Accurate Pipe Processing
Whether you’re manufacturing pipelines, pressure vessels, structural steel, offshore equipment, process plants, or heavy engineering components, the Technocrats CNC Pipe Profile Cutting System delivers exceptional cutting accuracy, faster production, and reduced material wastage. Designed to process round pipes with Plasma, Oxyfuel, or Laser cutting technology, our systems produce precise saddles, mitres, slots, holes, bevels, and complex profiles—eliminating manual marking and fabrication while improving productivity and weld preparation.
Are You Facing These Pipe Fabrication Challenges?
❌ Time-consuming manual pipe marking and layout
❌ Inaccurate saddle cuts, mitres, and branch profiles
❌ Poor fit-up leading to excessive welding and rework
❌ Slow production affecting project deadlines
❌ High material wastage due to cutting errors
❌ Difficulty maintaining consistent cut quality
❌ Multiple setups for different pipe profiles and bevels
❌ Rising labour costs and dependence on skilled operators
❌ Production delays caused by manual fabrication processes
❌ Frequent downtime due to unreliable equipment and limited-service support
Solution – The Technocrats CNC Pipe Profile Cutting System is engineered to eliminate these challenges through intelligent automation, precision CNC control, and high-speed Plasma, Oxyfuel, or Laser cutting technology. From accurate pipe profiling and bevel cutting to complex intersections and weld-ready joints, our systems help manufacturers improve productivity, reduce fabrication time, minimize material wastage, and deliver consistent quality on every job.
The CNC Pipe Profile Cutting System from Technocrats Plasma Systems is an advanced, computer-controlled solution designed for precision cutting, profiling, beveling, hole cutting, and weld preparation of round pipes and tubes. Engineered to meet the demanding requirements of modern fabrication industries, our systems combine CNC Plasma Cutting, Oxyfuel Cutting technology to produce highly accurate pipe profiles with exceptional speed and repeatability. From simple straight cuts to complex saddle cuts, mitre joints, branch intersections, and multi-axis bevels, the machine delivers consistent quality while significantly reducing manual fabrication time.
Designed for pipe fabrication companies, oil & gas contractors, EPC companies, pressure vessel manufacturers, structural steel fabricators, shipyards, power plants, process industries, offshore projects, railways, defence, and heavy engineering industries, the system automates complex pipe cutting operations that traditionally require skilled labour and multiple fabrication processes. Using advanced CAD/CAM software, the CNC controller interprets digital drawings and precisely rotates and positions the pipe while guiding the cutting torch along the programmed profile. This ensures accurate fit-up, improved weld preparation, reduced material wastage, and faster production cycles.
Technocrats’ CNC Pipe Profile Cutting Machines are available in multiple pipe diameter capacities, pipe lengths, and cutting configurations to suit a wide range of industrial applications. Whether you need Plasma, Oxyfuel, Laser, or a combination of cutting technologies, our systems can be customized to match your production requirements. Backed by 35+ years of engineering expertise, in-house manufacturing, and a strong Pan-India service network, Technocrats delivers reliable, high-performance CNC pipe cutting solutions that improve productivity, enhance fabrication quality, and reduce overall manufacturing costs.
Key Features
Benefits of Technocrats Plasma make CNC Pipe Profile cutting systems
Increase Pipe Fabrication Productivity
Automate cutting, profiling, and beveling operations to process more pipes in less time, helping you meet tight project deadlines and increase overall production capacity.Achieve Precise Pipe Profiles & Accurate Fit-Up
Produce highly accurate saddle cuts, mitre joints, branch intersections, and bevels that ensure perfect pipe fit-up, reducing fabrication errors and improving assembly quality.Reduce Welding Time & Rework
Accurate weld preparation minimizes gaps between joints, resulting in faster welding, lower filler material consumption, and significantly less grinding or rework.Minimize Material Wastage
Advanced CNC programming and precision cutting reduce cutting errors and optimize material usage, helping lower raw material costs and improve project profitability.Improve Consistency Across Every Component
Every pipe is cut according to the programmed design, ensuring repeatable dimensions and consistent quality throughout batch production.Handle Complex Pipe Geometries with Ease
Effortlessly produce branch connections, fish-mouth cuts, mitres, slots, holes, and multi-angle bevels that are difficult and time-consuming to achieve manually.Reduce Dependence on Skilled Manual Labour
Automating pipe profiling eliminates manual marking and layout, reducing operator dependency while improving production efficiency and accuracy.Faster Project Completion
High-speed CNC operation and automated cutting processes shorten fabrication cycles, enabling faster project execution and improved customer delivery timelines.Lower Operating Costs
Efficient cutting processes, optimized material utilization, and reduced labour requirements contribute to a lower overall cost per fabricated component.Built for Heavy Industrial Applications
Designed with a robust machine structure and industrial-grade components, the system delivers dependable performance in demanding fabrication environments with minimal downtime.Flexible for Diverse Pipe Fabrication Requirements
Available in multiple pipe diameter capacities, lengths, and cutting technologies, the machine can be configured to suit a wide range of industries and applications.Reliable After-Sales Support Across India
Benefit from Technocrats’ experienced service engineers, operator training, readily available spare parts, and responsive technical support to keep your production running efficiently.
Industres Served
Oil & Gas Industry
Power Generation
Process Plants
Shipbuilding & Marine
Heavy Engineering
Structural Steel Fabrication
Pressure Vessel & Tank Manufacturing
EPC Contractors
Offshore & Onshore Projects
Railways & Transportation
Defence & Government Projects
General Metal Fabrication
MACHINE CONFIGURATION
CNC Pipe Profile cutting machine comes for pipe length starting from 3 mtrs and can be made as per the customer length.
Consisting of :
- It’s a rotating and mechanical servo driven.
- Optional feature
- Bevelling (3-axis or 5-axis)
- 100amp to 400amp can be used in Plasma based on diameter.
- Provides Nesting and pipe cutting software with CNC controller.
Available models
| Model | Type of system | Max. Working size | Maximum cutting | No. of torches | Bevelling option |
|---|---|---|---|---|---|
| PUMA - RX | 3 axis | Diameter – 60 mm to 1500 mm (Plasma cutting) Pipe length – can be customized | 2mm to 50mm - Plasma cutting Upto 150 mm – Oxyfuel cutting | Can be customized | Manual bevelling arrangement |
| PUMA - BX | 5 / 6 axis | Diameter – 60 mm to 1500 mm (Plasma cutting) Pipe length – can be customized | 2mm to 50mm - Plasma cutting Upto 150 mm – Oxyfuel cutting | Can be customized | Auto bevelling arrangement |
| CUMA – a combined Plate & Pipe cutting system | 3 axis | Diameter – 60 mm to 1500 mm (Plasma cutting) Pipe length – can be customized | 2mm to 50mm - Plasma cutting Upto 150 mm – Oxyfuel cutting | Can be customized | Manual bevelling OR Auto bevelling arrangement |
| PANUMA – a combined Plate & Pipe cutting system | 3 / 5 / 6 axis | Diameter – 60 mm to 1500 mm (Plasma cutting) Pipe length – can be customized | 2mm to 50mm - Plasma cutting Upto 150 mm – Oxyfuel cutting | Can be customized | Manual bevelling OR Auto bevelling arrangement |
For all models – give link to their individual pages
Additional / optional features which can be provided in the machine
Auto pressure control for plasma.
Auto pressure control for Oxy-Fuel.
Powder marking for Oxy-fuel.
Plasma marking
Fume extraction.
IoT/Industry 4.0 compatibility
Technical Details
| Type of cutting | Circular pipe cutting |
| Type of structure | Trolley type Disc based OR Chuck type |
| No of torches | 1 No. Plasma / 1 No. Oxy Fuel / Multiple torches of Plasma or Oxyfuel |
| Structure material | Rigid MS Fabrication & Casted Parts |

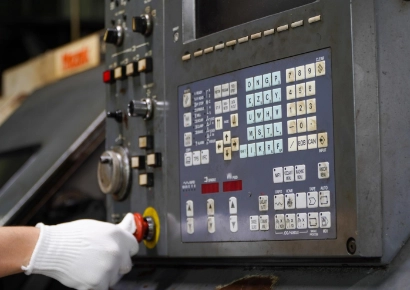

| No. of controlled axes with independent drives | X axis- 1 no. – For 3 axis & 5 axes Y axis- 1 no. – For 3 axis & 5 axes Z axis- 1 no. (torch up-dn movement) – For 3 axis & 5 axes C axis – 1 no. (torch rotation) – For 5 / 6 axes B axis – 1 no. (torch tilt) – For 5 / 6 axes |
| Drive mechanism | Rotary gearbox / Rack & pinion / Ball screw |
| CNC controller make | FLMC / equivalent |
| Pipe software | Tube Master / equivalent |
| Bevel arrangement (For 5 / 6 axes) | Automatic Bevel arrangement for bevel cutting on profiles. -45º to +45˚ |
| Pipe properties | • Seamless on external surface i.e., no welded protrusion on the external surface of the pipe • Ovality / deformity of pipes lead to improper cutting of shapes & sizes. |
Why Choose Technocrats Plasma Systems?
35+ Years of Engineering Excellence
100% Indian Design & Manufacturing
Trusted by 10000+ Customers
Customized Solutions for Every Application
Advanced Technology with Continuous Innovation
Complete Installation, Training & Technical Support
Strong Pan India Service Network
Built for Long-Term Reliability
A Long-Term Technology Partner

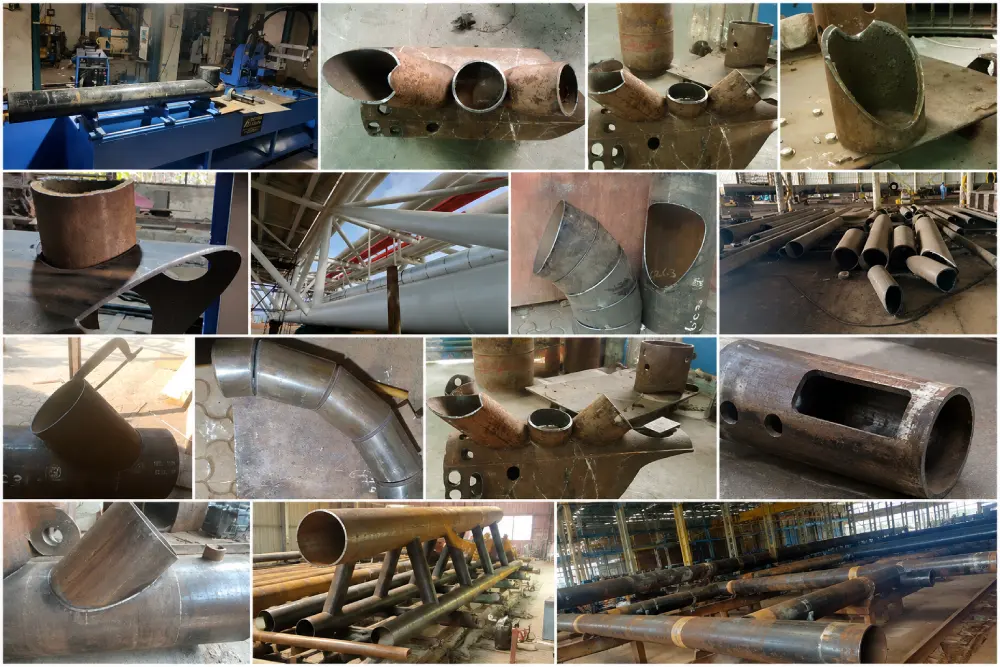

Customer Success Stories
Real Pipe Profiles. Real Customer Results.
Our customers rely on Technocrats CNC Pipe Profile Cutting Systems to produce high-quality pipe components with speed and precision. Explore these actual cutting samples to see the clean edges, accurate profiles, and weld-ready finishes achieved across a wide range of industrial applications.
Manual Pipe Fabrication VS TECHNOCRATS CNC Pipe Profile Cutting System
| Comparison | Manual Pipe Fabrication | Technocrats CNC Pipe Profile Cutting System |
|---|---|---|
| Pipe Marking & Layout | Manual measuring and marking | Fully automated CNC programming |
| Profile Accuracy | Depends on operator skill | High precision with excellent repeatability |
| Pipe Fit-Up | Frequent adjustments required | Accurate weld-ready fit-up |
| Bevel Preparation | Manual grinding and machining | Automatic bevel cutting during profiling |
| Production Speed | Slow and labour-intensive | High-speed automated processing |
| Complex Profiles | Difficult and time-consuming | Easily cuts saddles, mitres, branch holes, slots, and complex contours |
| Material Utilization | Higher chances of cutting errors | Optimized cutting with minimal wastage |
| Labour Requirement | Skilled manual labour required | Reduced operator dependency |
| Consistency | Quality varies between operators | Uniform quality across every component |
| Project Turnaround | Longer fabrication cycles | Faster project completion and improved productivity |
FREQUENTLY ASKED QUESTIONS
A CNC Pipe Profile Cutting System is a computer-controlled machine used to cut, profile, bevel, and prepare round pipes for welding. It automates complex pipe cutting operations with high precision and repeatability.
Our systems are designed to process round pipes made from mild steel, stainless steel, carbon steel, and other metals. The supported pipe diameter and length depend on the selected machine configuration.

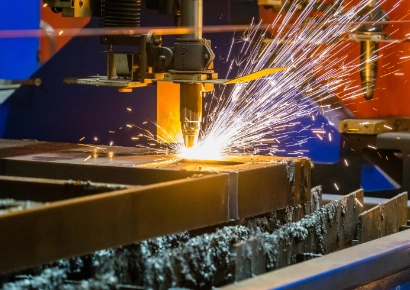

Technocrats offers CNC Pipe Profile Cutting Systems with Plasma, Oxyfuel, Laser, or multi-process configurations, depending on your application and material requirements.
The machine can produce saddle cuts, fish-mouth cuts, mitre joints, branch intersections, holes, slots, end profiles, and multi-angle bevels with excellent accuracy.
Yes. Our CNC Pipe Profile Cutting Systems can produce accurate weld-preparation bevels during the cutting process, reducing the need for secondary machining or grinding.
These machines are widely used in oil & gas, shipbuilding, power generation, EPC projects, structural steel fabrication, pressure vessel manufacturing, process plants, and heavy engineering industries.
Yes. Our systems are compatible with industry-standard CAD/CAM software, allowing you to import pipe designs, generate cutting programs, and optimize production efficiently.

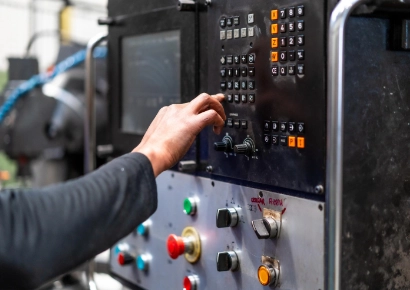

The CNC control system, precision motion components, and automatic torch height control ensure high cutting accuracy and excellent repeatability for consistent pipe fabrication.
Yes. We offer customized pipe diameter capacities, pipe lengths, cutting technologies, and automation features to meet your specific production requirements.
Yes. Our experienced engineers provide complete installation, commissioning, operator training, and production support to ensure smooth machine operation from day one.
We offer Pan-India service support, preventive maintenance assistance, spare parts availability, technical guidance, and remote troubleshooting to maximize machine uptime.
With proper maintenance and recommended operating practices, a Technocrats CNC Pipe Profile Cutting System is designed to deliver reliable performance for 15–20 years or more.
