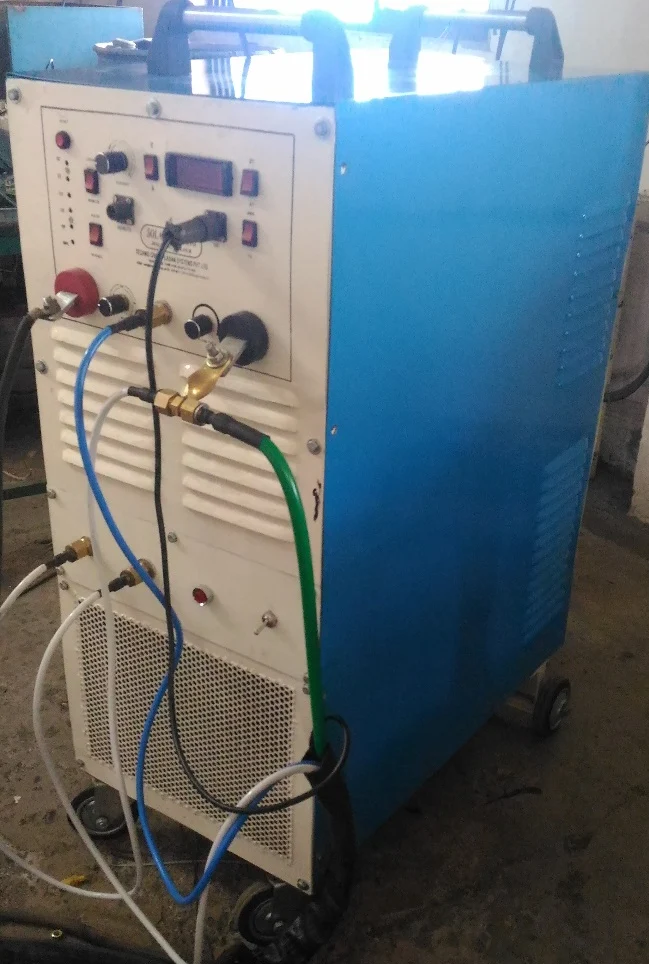

TECHNICAL SPECIFICATIONS for SOLARIS 400 TIG-W
- Input Supply – 3 phase – 400 Volts ± 10%, 50 / 60 Hz
- Input kVA @100% duty cycle – 8.40
- Input Current @100% duty cycle – 12.2
- Current Range – 4 – 400 Amps
- Open Circuit Voltage – 75 – 85 Volts
- Welding Current – Duty cycle is calculated at 10 mins
- @60% duty cycle – 400 Amps
- @100% duty cycle – 310 Amps
- Protection Class – IP 23
- Class of Insulation – H
- Power Factor – Better than 0.90
- Efficiency – Better than 0.90
- Power source cooling – Forced Air
- High Frequency unit – Electronic Circuitry
- Torch cooling – Water cooled
STANDARD SCOPE OF SUPPLY
- Inbuilt Water cooling unit
- Gas Hose pipe 5 mtrs.
- Argon flow meter
- Regulator
- TIG torch 3 mtrs.
OPTIONAL ACCESSORIES
- Welding cable with lugs
- Welding Electrode Holder
- Earthing cable with clamp
- Input cable for power source
